Inner Join - Animated

Last modified: August 09, 2021

This is the default type of JOIN in SQL, in fact you do not even need to specify INNER JOIN when writing a query. Only writing JOIN is an INNER JOIN.

FROM facebook
JOIN linkedin
ON =

SQL first creates a new table with the columns of both of the tables you are trying to combine.

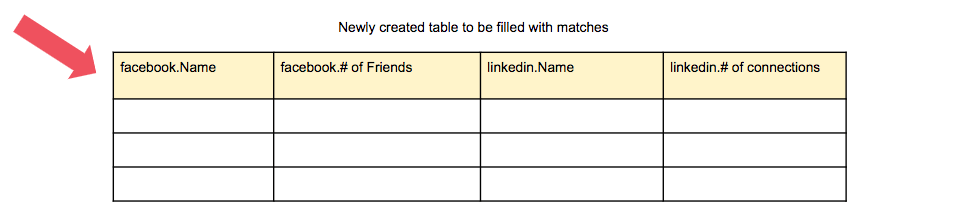

Creation of joined table

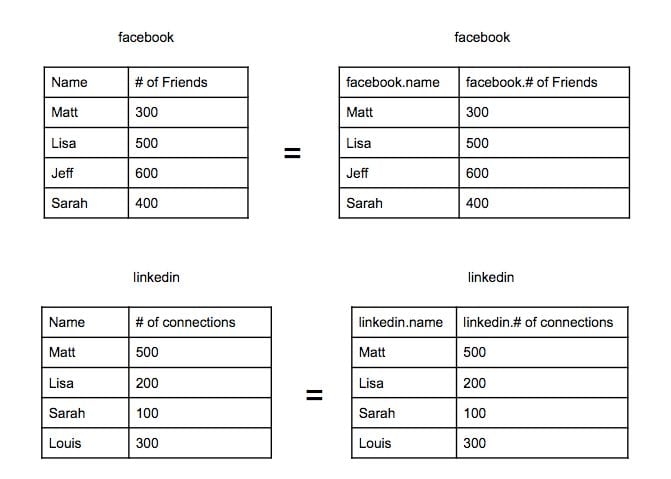

It then tries to find values that match between the columns you specify in the ON statement. Putting the table name with a period before the column name makes it clear which two columns of the tables SQL will be looking for matches between.

ON =

showing that is the same as name from the facebook table

SQL then starts with the first value of the specified column in the first table ( and then looks through every value in the specified column of the second table ( for a match.

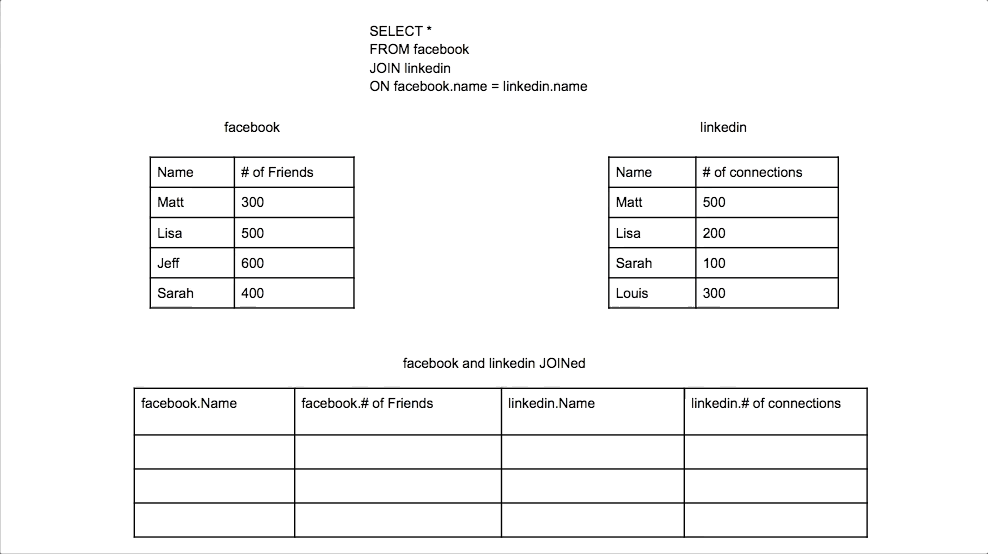

Gif of how inner join iterates through the tables

If there is a match it copies the data from both the row of the first table and the row of the second table and puts it into the newly created table. SQL will not add in any rows that did not have a match.

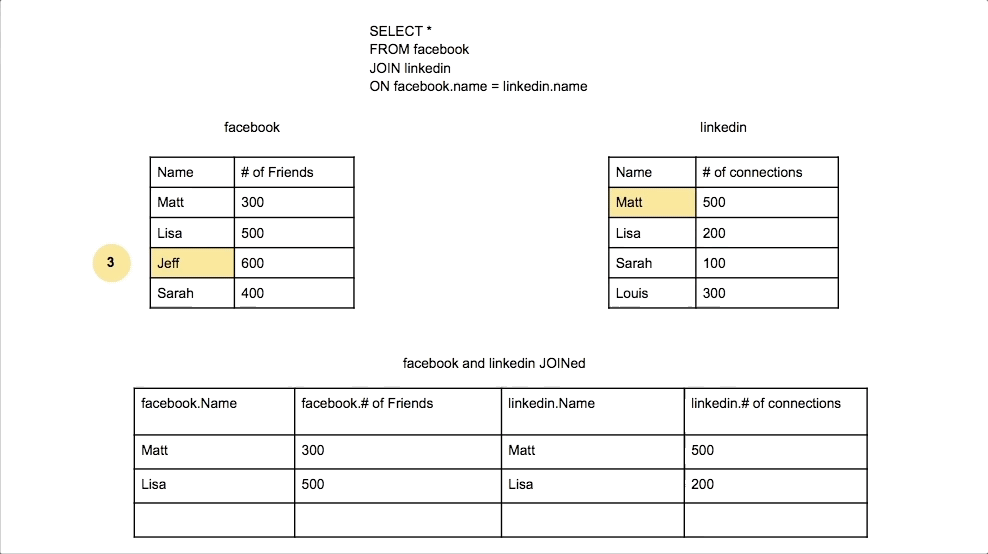

gif of not adding unmatched rows

Be sure to know what data you want in the final table so that the data left out does not affect your analysis.

Another thing to consider is that SQL will join the rows every time there is a match. So if your data in the columns you are joining on are not unique you will get duplicate data in the final table.

Non Unique data in Second table:

non unique second table

Non Unique data in First table:

non unique first table

As we can see the non unique data pulls in the same value from the other table twice. This is a common situation that can cause you to double count data if you are not aware that this is happening.

Written by: Matt David
Reviewed by: Tim Miller
